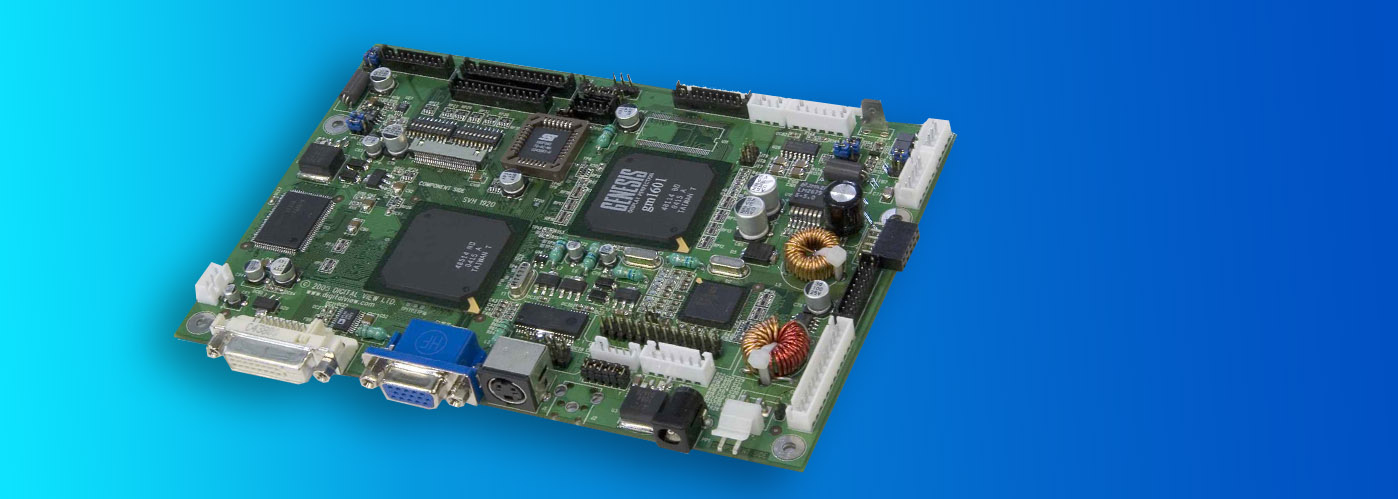

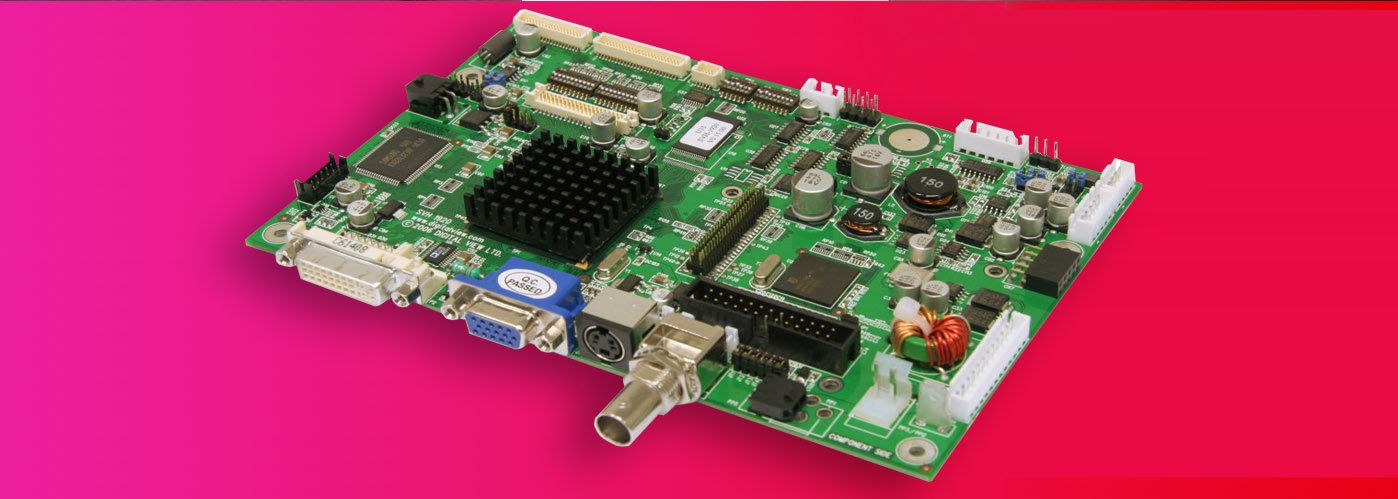

Display Control Boards

iDisplays offers a broad array of display controller solutions to meet the demand of designers in several market segments from consumer to broadcast. We offer different boards with various input configurations that can drive displays up to 4K resolution. Our in-house programming centre presents us with the opportunity to support you with programmed and tested boards to drive your specific display.


General Features

  • Panel Connectivity: Supports All LCD TFT Panels up to 4096x2160 (True-4K) - 4 :3 and 16:9
  • Offset and Gain adjustment
  • Interlaced or progressive inputs
  • Extensive video blending, including: RGB key, luma key, HSV key, alpha blend, symbology-encode alpha, blue alpha, more
  • Supports, VGA, DVI , HDMI, RGBHV, PAL/NTSC , RS343, RS-170
  • Supports Separate H/V Sync , Composite H/V Sync (TTL Levels) and Sync-on-Green (SOG)
  • 2.5 Video Graphic Modes Compatibility
  • All standard video graphic modes up to 4096 x 2160 @ 60 / 120 Hz
  • Horizontal Frequency 15Khz to 85Khz (Max 162MHz Clock rate) ,Vertical Frequency 50 to 120Hz
  • 2.6 Image Control by On-Screen Display (OSD)
  • Brightness , Contrast ,Sharpness, Colour Temperature phase and frequency adjustments
  • Horizontal and Vertical position, Auto Adjustments
  • PIP / POP support
